CURVA 90° M – NP

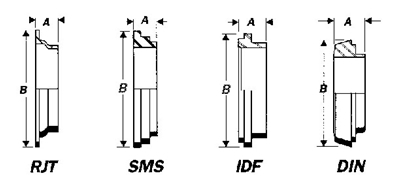

ø RJT SMS IDF
A B A B A B
1″ 13 42,0 13 35,3 15 33,8
1″.1/2″ 13 53,0 13 55,0 15 47,0
2″ 13 67,0 13 65,0 15 60,5
2.1/2″ 13 80,0 13 80,0 80,0 74,0
3″ 13 93,0 13 93,0 15 87,5
4″ 15 117,0 15 127,0 15 114,0
5″ 18 145,0 20 145,0 - -
6″ 24 175,0 24 175,0 - -
